Weather Log

Model 652 Weather Log Software

The Weather Log software lets you view the Weather Site information to analyze and save for later reference and to transmit it via the World Wide Web to the Weather Ops database for distribution. The Computer Interface (Model 651) puts all the information gathered by the Weather Site into computer format (ASCII) for serial transfer. Data travels over a serial cable that plugs into the serial port of its host computer. The program runs in Windows 3.1, 95 or NT.

For remote applications the Computer Interface plugs into a stand-alone modem instead of a computer. The Weather Log communicates with the modem just as it would a computer.

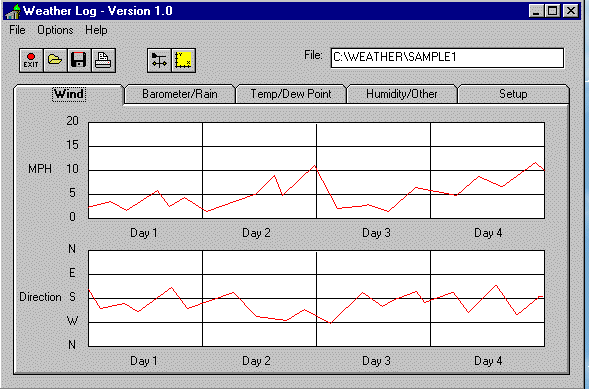

The screen below is simulated data.

Equipment Required

The Weather Log operates on a 386 or higher IBM or compatible PC with Windows 3.1 or higher, 1MB RAM, VGA or higher graphic capabilities, and a Windows compatible mouse. It outputs to any windows-supported printer. It requires a serial I/O port set up for COM1, COM2, COM3 or COM4. The Weather Log is provided on one 3.5 inch floppy diskette and runs stand-alone. It is installed on your hard disk, and requires a minimum of 2MB available.
